Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand

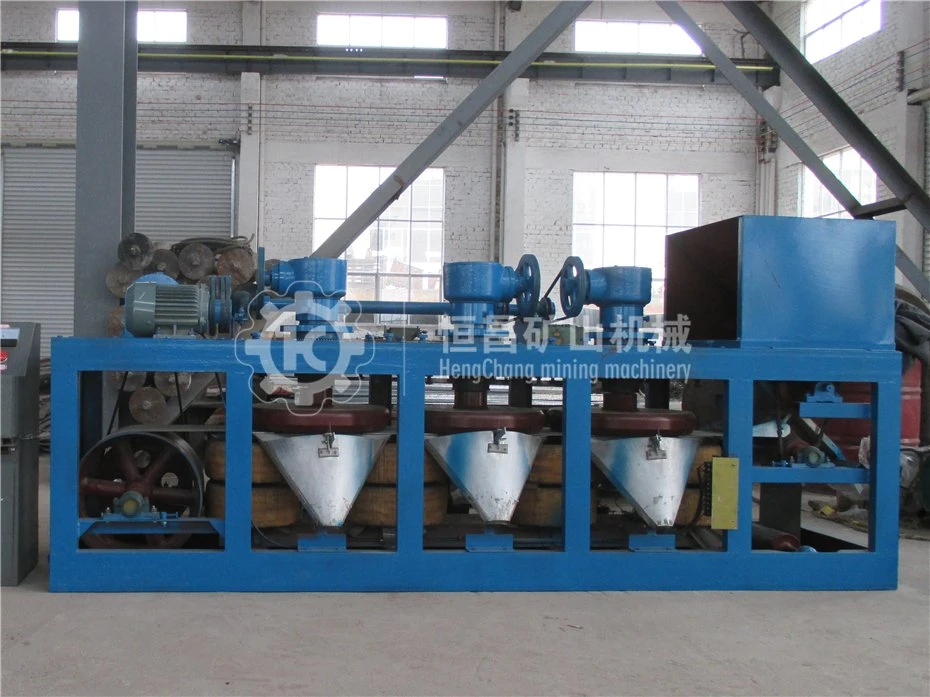

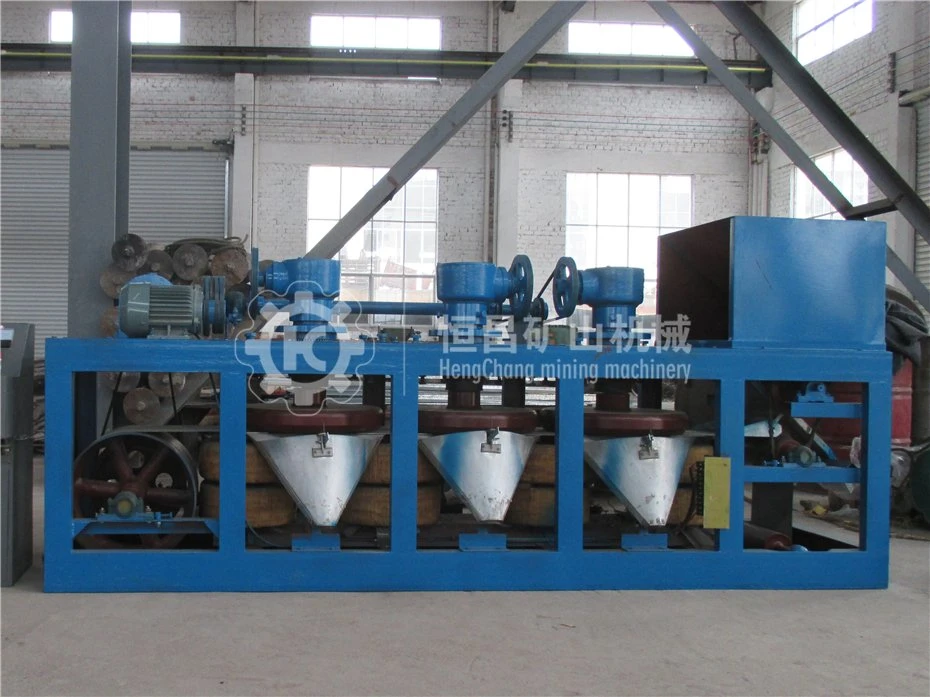

                               Three Disc Belt Dry Type Magnetic Separator

1.Products Description:
Three-disc electromagnetic separator is sorting mineral size less than 2-3mm of weakly magnetic minerals and rare metal ore selection ,it is a very important mineral processing equipment. Three-disc electromagnetic separator have CP-500, CP-600 two models.

Three-disc electromagnetic separator is for a variety of strong magnetic minerals mixed ore separation, according to the difference of magnetic minerals, can achieving efficient separation of minerals can form different intensity magnetic disk by adjusting the excitation current levels, can also be adjusted each level disk and sensing distance between dressing grain is to get different magnetic induction intensity, reaching a one-time separation of various minerals. This device is widely used in ilmenite, monazite, tungsten, tin, tantalum, iron ore and other minerals with magnetic and non-magnetic dry sorting.
Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand
2.Advantages of three-disc electromagnetic separator:
1. Very high magnetic field intensity 16000gauss - 20000gauss
2. This separator can separate four different minerals in one time.
3. This separator can get the final concentrate of three to four mineral.
4. Ta & Nb grade can reach 60% by using this separator.
5. it's easy to install, adjust, and operate.
6. The magnetic intensity of each disc is adjustable from 1000-20000 gauss, could be used for other mineral concentration.
Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand
Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand

3. Technical parameters of three-disc electromagnetic separator:
ModelUnit3PC-5003PC-6003PCX-600
Magnetic
intensity
HauteurDistance to belt surface 2mm Disk teeth 1700                           Distance to belt surface 2mm Disk teeth 1800Distance to belt surface 2mm Disk teeth 2000
Number of
magnetic disk
Piece333
Diameter of
magnetic disk
mm500600600
Revolution of
magnetic disk
r/min25-4022-3822-32
Power supplyV380380380
Exciting coilUnit444
Matching motorkw0.751.51.5
Exciting powerkw1.51.61.6
Coil temperature
rise
ºC656565
Rated current
of coil
A1.1-1.81.2-1.91.2-2.2
Duty rating ContinuousContinuousContinuous
Feed widthmm210300300
Feed sizemm≤2≤2≤2
Processing
 capacity
kg/h100-500120-80080-800
Outside
Dimension
mm2800×800×12203200×870×11603150×900×1250
Weightkg190022002300

Three Disc Dry  High Intensity Magnetic Separator , The magnetic strength will be > 16000 GS)

4.Other magnetic separators for your reference:

Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand

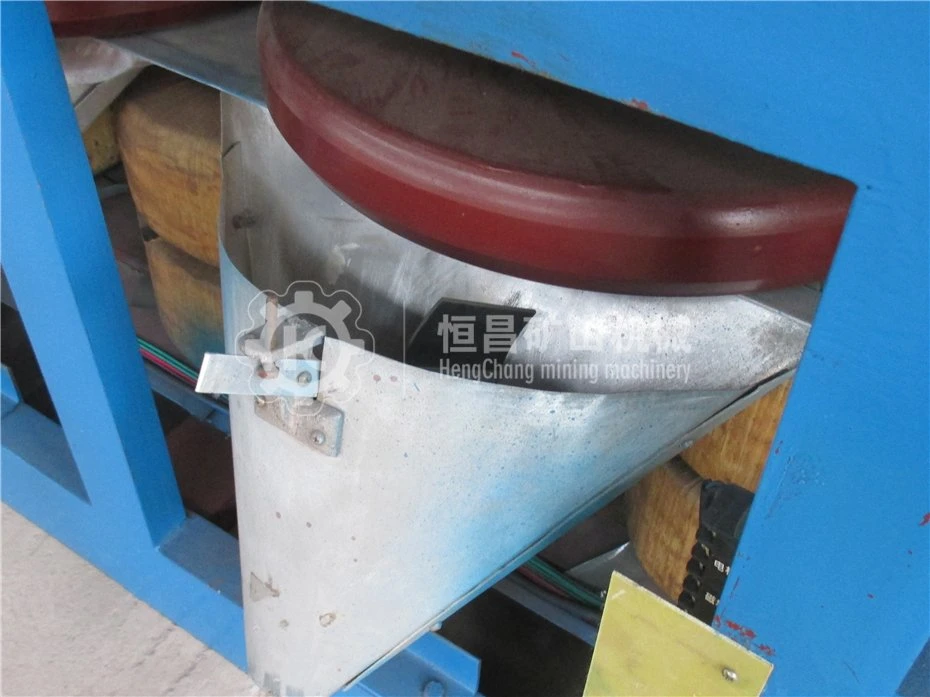

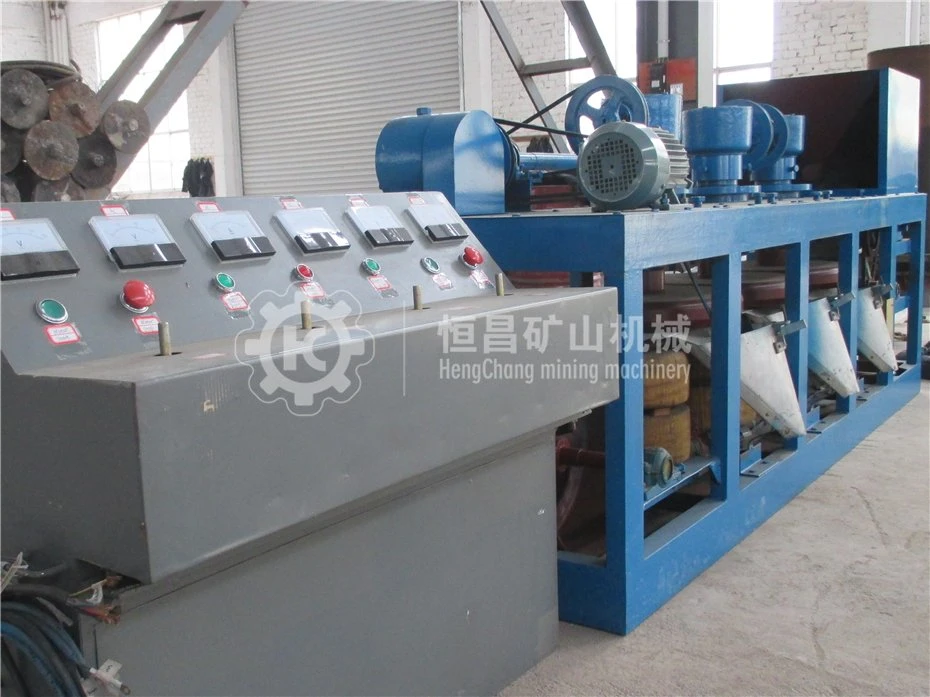

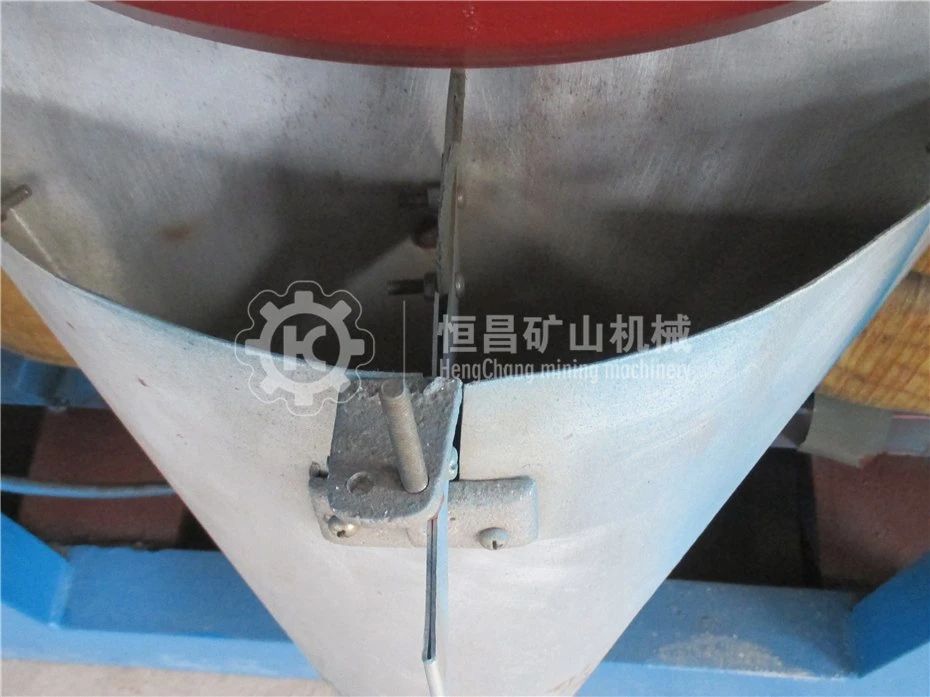

5.The details of three-disc electromagnetic separator:
Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand
Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand
Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand

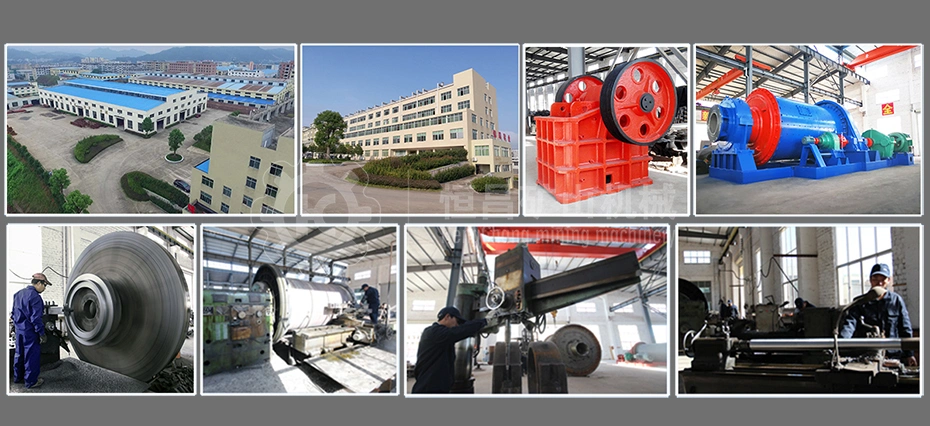

6.About our factory:
Jiangxi Hengchang Mining Machinery Manufacturing Co., Ltd. is located in No.3 Chuangye Road. Guzhang In dustrial Park. Shicheng County. Ganzhou City. Jiangxi Province. China.Our company is engaged in the mineral processing equipment research, development, design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. And mainly the manufacture of the products like as Shaking table. Flotation equipment. Crushing equipment. Magnetic separator. Screening equipment. Classifying equipment. Agitation tank, Feeding equipment. Gravity separation equipment. Wet separation equipment. Spiral chute. Saw-tooth wave jig and Diaphragm Jig. Grinding equipment. Ball mill. Slurry pump. Centrifugal pump, Conveying equipment.

We manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten,lead. zinc. tin. molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile,diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal,precious metals and other minerals. And we have export qualifications, our products sell well all over the world for several years, especially exported to Brazil. India. Indonesia.South Africa. Somalia, Philippines. Malaysia. Sudan, Nigeria. Iran, Russia, Ghana. Kazakhstan Kyrgyzstan.Cambodia,Vietnam,Korea,Mongolia and other countries.
Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand
Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand
Magnetic Intensity Adjustable Magnetic Separator for Mining Wolframite Sand

Warmly welcome you come to visist our factory
Our factory located at Ganzhou city, Jiangxi province, China.
Visit line: Take flight from your country to Guangzhou airport in China, and then take flight from Guangzhou-- to Gan zhou airport, then we will send the car to pick up you from Ganzhou airport.


7.Our service:

 1.Pre-sale services:
  (1)Select equipment model;
  (2) Design and manufactLire products according to clients' special requirement;
  (3)Train technical personnel for dients.

2.Services during the sale:
(1) Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.

3. After-sale services:
(1) Assist dients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3) Train the first-line operators on site;

8. FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.not dealer.Direct factory sale makes price more competitive.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
